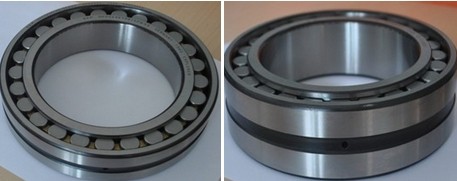

Our part no NNF 5020 ADB-2LSV----is a cylindrical roller bearing, also called locating bearing, double row full complement seal on both sides, flanges for double direction axial load, NNF design, which bearings in the NNF 50 and 3194(00) series are always sealed on both sides and filled with grease. And these bearings can be used to locate a shaft axially in both directions.

d: 100mm
D: 150mm
B: 67mm
M: 3.95 kg
Basic dynamic load rating, radial, C:   347 KN
Basic static load rating, radial,   C0:  570 KN
Limiting speed :       850 r/min

Our stocklist for  SKF NNF series double row full complement roller bearing  interchange reference German INA bearings SL0450 series as below:

    SKF bearing
NNF 5004 ADB-2LSV
NNF 5005 ADB-2LSV
NNF 5006 ADB-2LSV
NNF 5007 ADB-2LSV
NNF 5008 ADB-2LSV
NNF 5009 ADB-2LSV
NNF 5010 ADB-2LSV
NNF 5011 ADB-2LSV
NNF 5012 ADB-2LSV
NNF 5013 ADB-2LSV
NNF 5014 ADB-2LSV
NNF 5015 ADB-2LSV
NNF 5016 ADB-2LSV
NNF 5017 ADB-2LSV
NNF 5018 ADB-2LSV
NNF 5019 ADB-2LSV
NNF 5020 ADB-2LSV
NNF 5022 ADA-2LSV
NNF 5024 ADA-2LSV
NNF 5026 ADA-2LSV
NNF 5028 ADA-2LSV
NNF 5030 ADA-2LSV
NNF 5032 ADA-2LSV
NNF 5034 ADA-2LSV
NNF 5036 ADA-2LSV
NNF 5038 ADA-2LSV
NNF 5040 ADA-2LSV
NNF 5044 ADA-2LSV
NF 5048 ADA-2LSV
NNF 5052 ADA-2LSV
NNF 5056 ADA-2LSV
NNF 5060 ADA-2LSV
