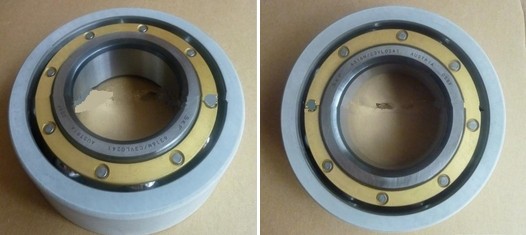

To protect against damagers caused by electric currents in electric motors, generators or associated equipment, SKF company provides electrically insulated bearings, such as SKF 6316/C3VL0241, called INSOCOAT bearings, single row, with a riveted cage of pressed steel, ball centered, which have an electrically insulating coating on the external surfaces of the outer ring.
d: 80 mm
D: 170 mm
B: 39 mm
M: 3.55 kg
Basic dynamic load rating, C: 130 KN
Basic static load rating , Co: 86.5 KN
Reference Speed, 8500 r/min
Limiting Speed, 5800 r/min
6314/C3VL0241
6215/C3VL0241
6315/C3VL0241
6216/C3VL0241
6316/C3VL0241
6217/C3VL0241
6317/C3VL0241
6218/C3VL0241
6318/C3VL0241
6219/C3VL0241
6319/C3VL0241
6220/C3VL0241
6320/C3VL0241
6222/C3VL0241
6322/C3VL0241
6224/C3VL0241
6324/C3VL2071
6226/C3VL2071
6326/C3VL2071
6328/C3VL2071
6230/C3VL2071
6330/C3VL2071
NU 315 ECP/VL0241
NU317ECM/C3VL0241
NU319ECM/C3VL0241
NU322ECM/C3VL0241
NU324ECM/C3VL0241
|
