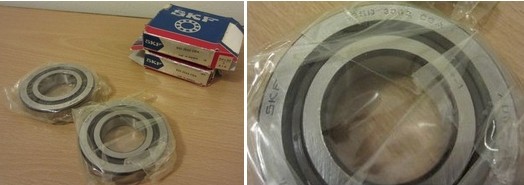

SKF Precision BSD 3062 CG is featured product of angular contact thrust ball bearings for screw drives, single direction, which are shown here were originally designed to support the rotary tables of drilling rigs. They are of separable design, i.e. the washers and ball and cage assembly can be mounted individually. And the bearings are able to take up axial loads acting in one direction.
d: 30mm
D:62mm
B: 15mm
M: 0.22kg
Basic dynamic load rating, C: 28.5 KN
Basic static load rating , Co: 71 KN
Attainable speeds when lubricating with grease, 8000 r/min
Attainable speeds when lubricating with oil-air, 9500 r/min
Other designs SKF angular contact thrust ball bearings part no are available as below:
BSA 201 CG
BSA 202 CG
BSA 203 CG
BSA 204 CG
BSD 2047 CG
BSA 205 CG
BSD 2562 CG
BSA 305 CG
BSD 3062 CG
BSA 206 CG
BSA 306 CG
BSD 3572 CG
BSA 207 CG
BSA 307 CG
BSD 4072 CG
BSA 208 CG
BSD 4090 CG
BSA 308 CG
BSD 4575 CG
BSA 209 CG
BSD 45100 CG
BSA 210 CG
BSD 50100 CG
BSD 55100 CG
BSD 55120 CG
BSA 212 CG
BSD 60120 CG
BSA 215 CG
|
